Suzuki GZ250 Marauder Igniter CDI 1999-2010
Finding out that the OEM CDI unit PN:32900-13F00 for a Suzuki GZ250 Marauder was over 400.00 new and around 150.00 used I started looking for another answer. After watching some videos and comparing wiring diagrams I found that with a few simple changes the Z250 CDI unit (Pn# 32900-05G10) will work with the GZ250.

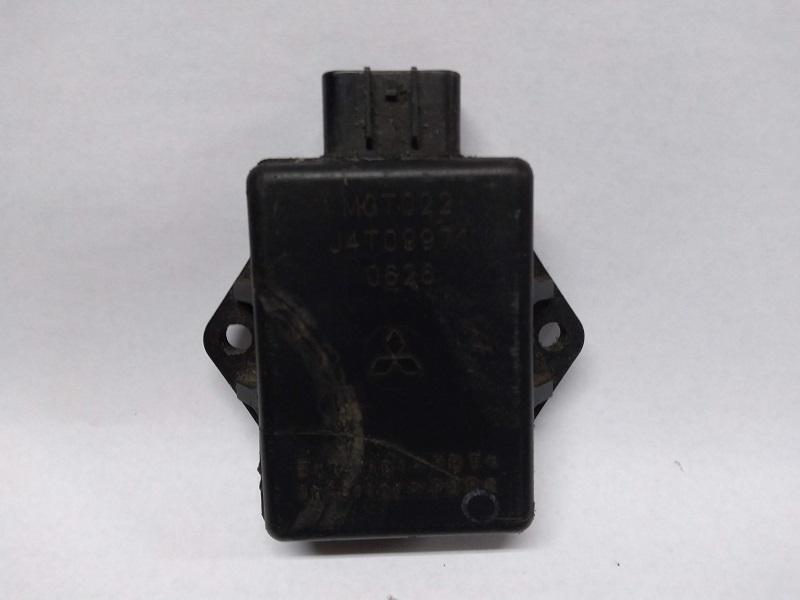

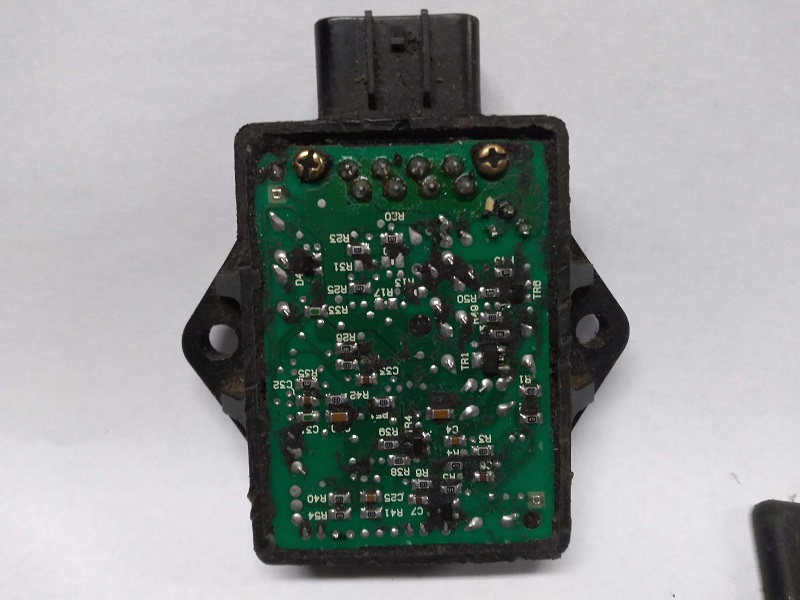

The original cdi stopped working and I attempted to see inside, hoping to find a poor solder joint. After carefully cutting off the top and carefully removing the non conformal coating over the board I found nothing. I touched up a few things but it still did not work.

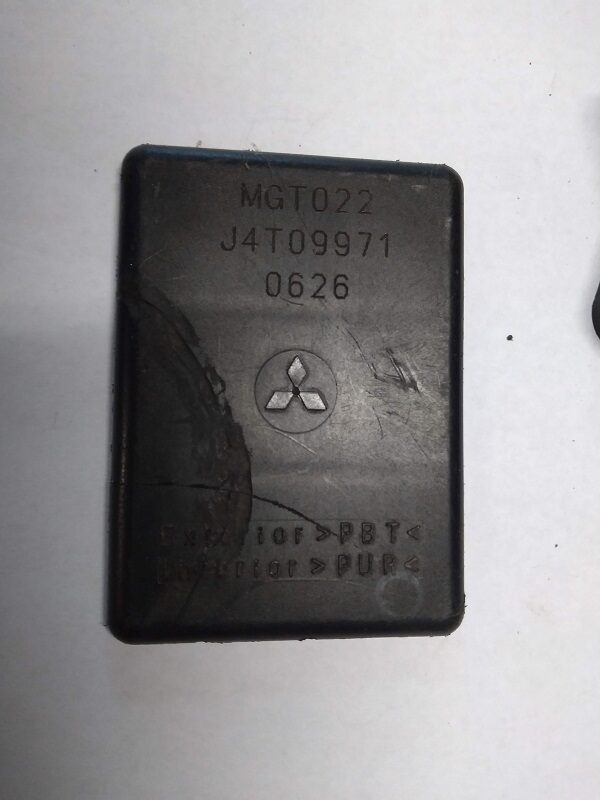

Numbers MGT022, J4T09971, 0626 on the cover cross references to PN:32900-13F00

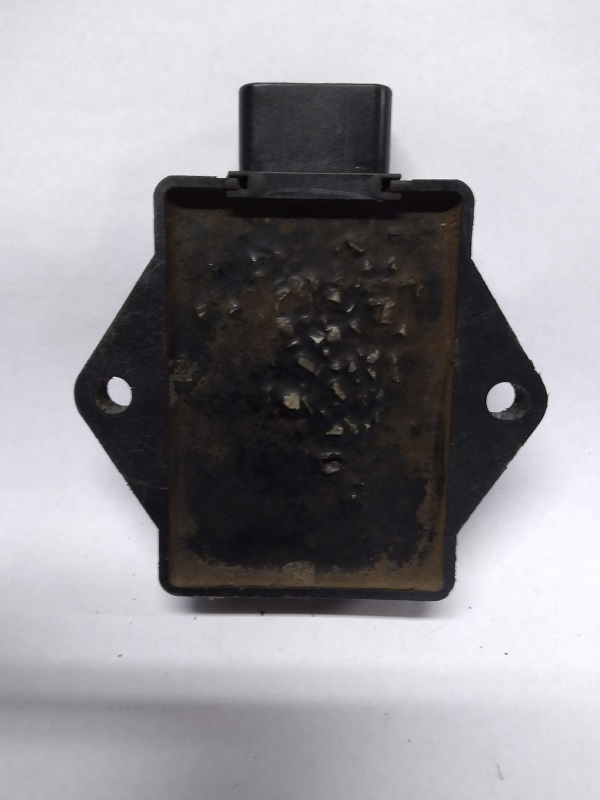

The bottom just shows more of the non-conformal coating which looks to be mixed in with gravel as a filler.
The replacement I was able to get to work is for the Z250 and the LTZ-250 Quadsport.
After comparing wiring diagrams and some experimentation I found what pins I needed to swap. Here’s a video of it working.
As you can see in the above video this bike does not have the original mounting bracket, but since I know most people do, we created a universal bracket adapter that I think should work for most people.
Here’s a short video showing how to remove the pins in the connector.
So if your looking for an inexpensive answer I have these cdi/igniter units available for sale on Ebay.
